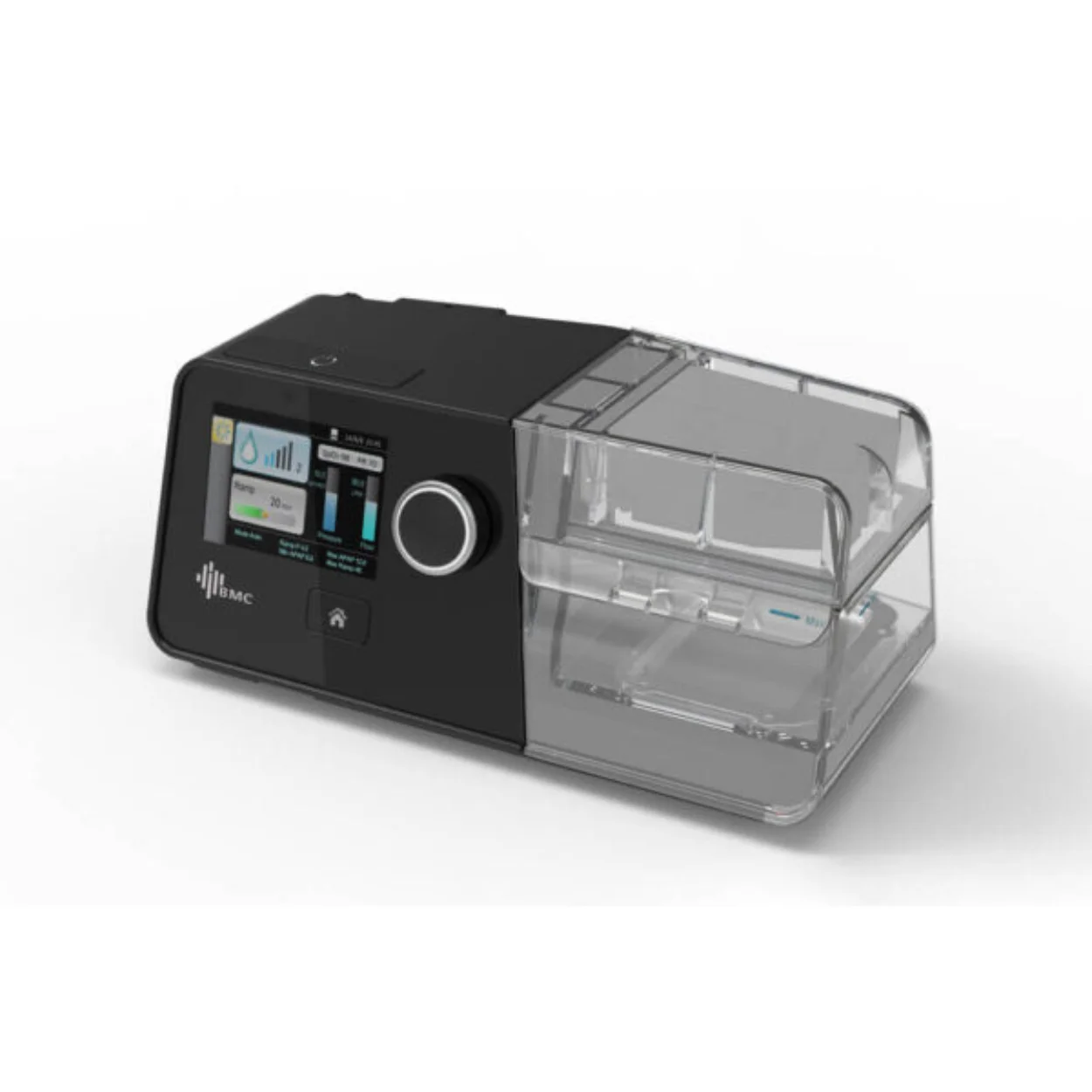

BMC RESmart G3 A20 Auto CPAP Machine

	G3 C20	G3 A20
Working mode & functions	CPAP	CPAP, AutoCPAP
Advanced event detection		CSA Detection
Comfort features
Auto Ramp	•	•
Auto Humidifier	•	•
Auto Heated Tubing	•	•
Reslex (Expiration Pressure Release)	•	•
Smart C	•	•
Smart A		•
Data
SD card	•	•
iCode Web Version	•	•
Built-in cellular / WiFi module	•	•
Cloud Platform	•	•

Description

G3 A20 is BMC’s brand new generation of auto-adjusting pressure devices with an integrated humidifier, heated tubing, and wireless connectivity.

Modern design with a user-friendly interface

Brand-new humidifier design keeps the G3 compact and attractive.

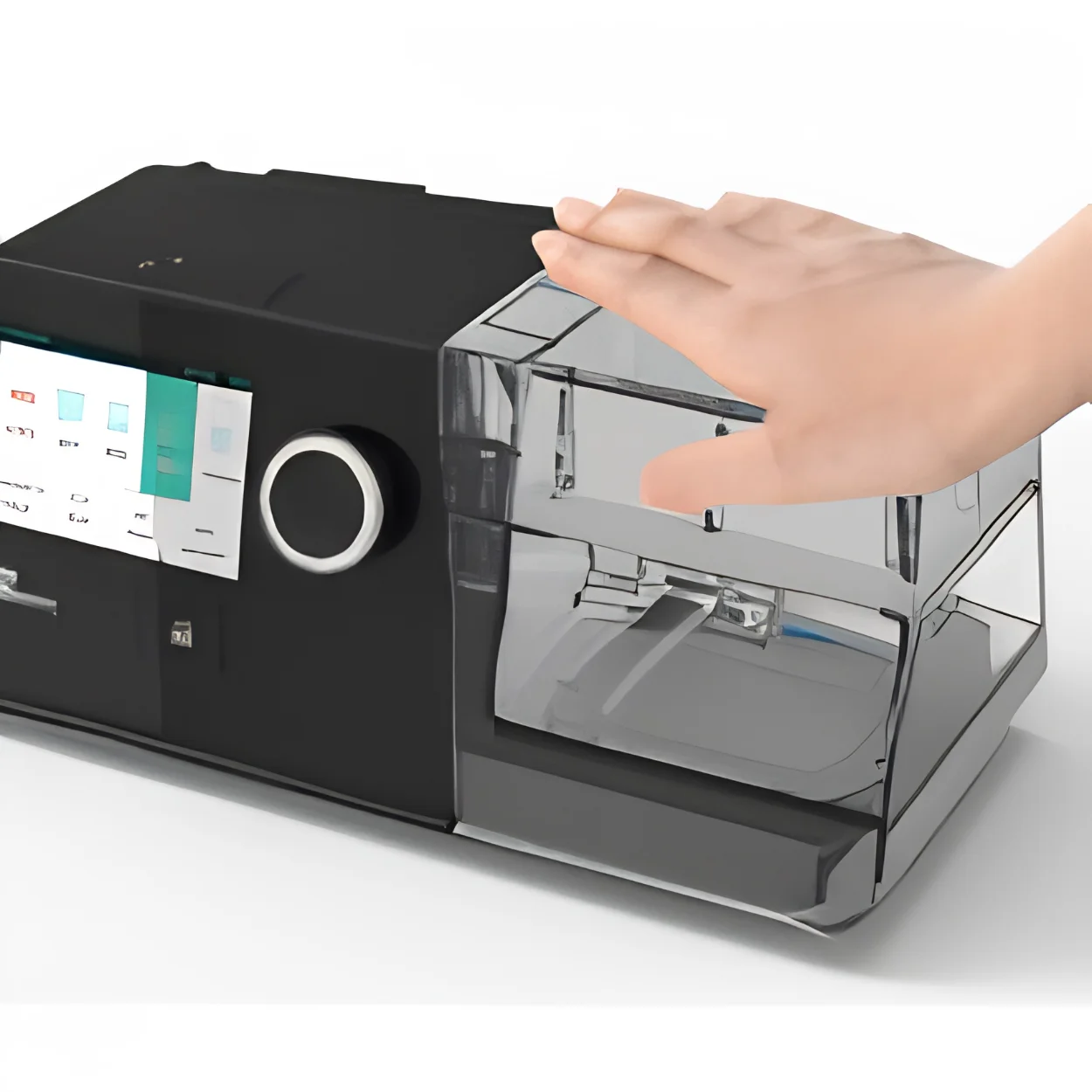

The innovative PUSH water chamber is simple to use
Water can be added without removing the water chamber for ease of use
Humanized UI Design
One button access to frequently used features
A 3.5” screen displays real-time data in full color.
Accessory and supply reminder keeps your treatment healthy and effective.
G3 has a clock, temperature, and humidity monitor on stand-by, multi-purpose for convenience.

Intelligent comfort features

Pre-heat
The G3 series has a pre-heat feature, to warm your humidifier water up for ultimate comfort during cold, dry weather.
Integrated heated tubing with intelligent Auto Humidity control
Integrated heated tubing with intelligent Auto Humidity control gives G3 maximum moisture while ensuring condensation in the tubing is not an issue
Excellent silence performance
BMC uses multi-stage noise reduction technology to ensure noise performance under 28 dB(A).

Effective Performance

Intelligent Pressure Adjusting Technology – Smart CG3 can automatically adjust treatment plans based on changes in patient needs. Care is closer to you with reduced costly visits to the doctors.
Smart C (CPAP mode)

Optimizes the treatment pressure every 5 days according to AHI and SNI.
PM2.5 filter box
Extra-sensitive users can filter finer dust and allergens with the PM2.5 filter box.
SpO2 sensor
Finger clip type

Powerful data transfer/retrieval solution

Various ways of reviewing Sleep Report

Complete optional accessoriesG3 adopts a series of complete accessories to meet different usage scenarios and needs

Model	Working mode	Pressure range (cmH2O)	Screen Size (inch)	Device type
G2S B25VT	CPAP, S, T, S/T	4 - 25 cmH2O	3.5	Bi-level S/T with target tidal volume
G2S B30VT	CPAP, S, T, S/T	4 - 30 cmH2O	3.5	Bi-level S/T with target tidal volume

Scope of application	Suitable for the treatment of Snoring and Obstructive Sleep Apnea Hypopnea Syndrome (OSAHS).
Device Size	Dimensions： 159 mm x 66 mm « 72 mm(6.26 in x 2.60 in x 2.83 in)Weight: <400g
Working Mode	CPAP, AutoCPAP
Pressure Range	4-20hPa
Pressure Accuracy	± 0.5 hPa
Pressure Sensitivity	Standard / Soft / Female
Smart A/C	Yes
Ramp Time	0 - 60 min / Auto
Reslex (Expiration Pressure Release)	Off, Level 1 - 3
Auto On	Yes
Auto Off	Yes
Moisture Exchanger Type	None / HU (Normal) / HU-Plus (Enhanced)
Leak Prompt	Yes
Accessories Reminder	Yes
Automatic Leakage Compensation	Yes
Firmware Upgrade through App	Yes
Wireless Data Transmission	Yes
Sound Pressure Level	< 30 dB, when the device is working at the pressure of 10 hPa.
AC Power Consumption	100 - 240 V AC, 50 / 60 Hz, 1.0 A max
Device Input	19 V, 1.26 A
Carrying Case	Optional

Model	Pressure(cmH2O)	Mode	Type	Screen Size(inch)
G2S A20	4 - 20	CPAP, AutoCPAP	Auto CPAP	2.4
